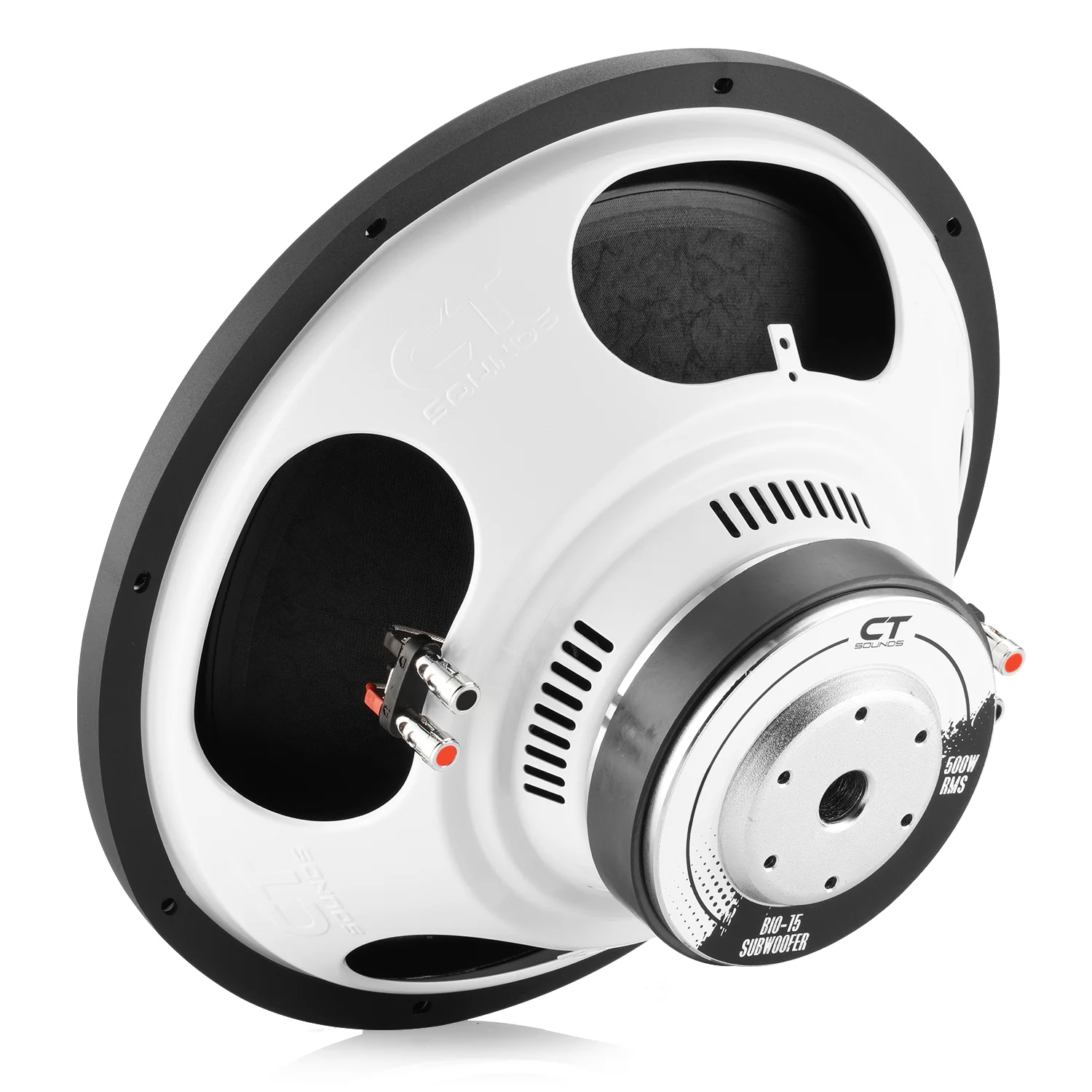

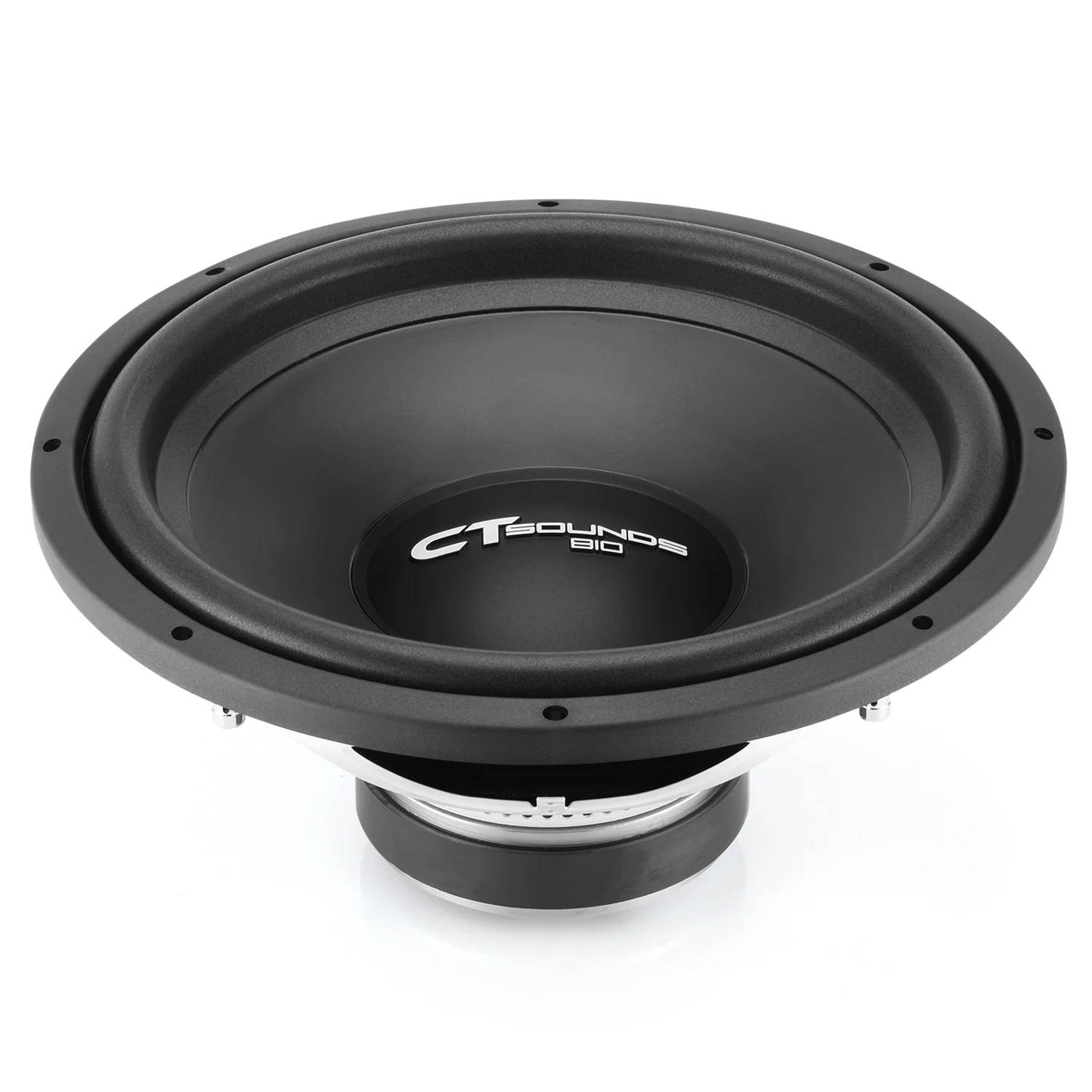

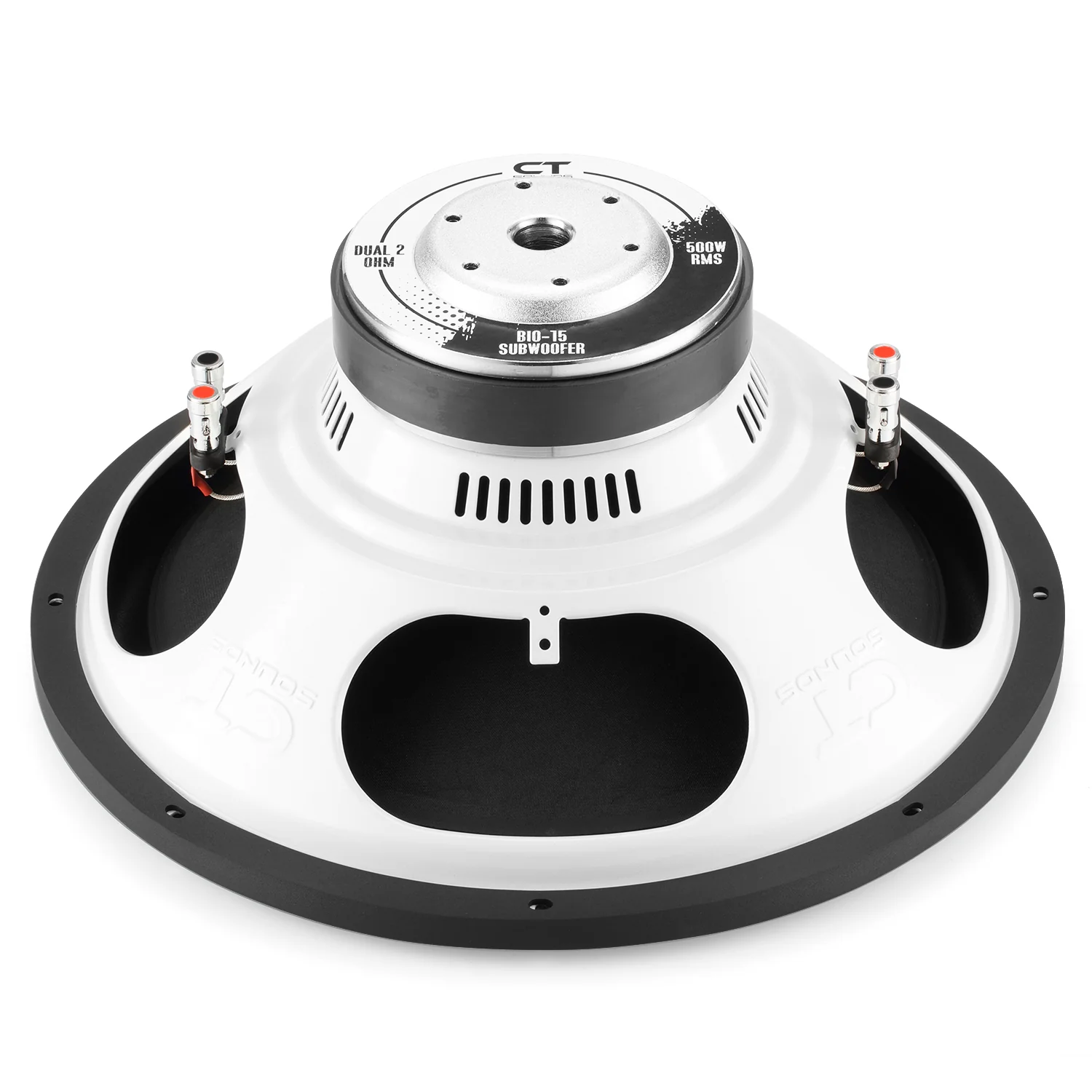

BIO-15 // 500 Watts RMS 15 Inch Car Subwoofer

Product image 1
1 / 6
+1

BIO-15 // 500 Watts RMS 15 Inch Car Subwoofer

Details

CT Sounds is proud to introduce the Bio 15” Car Subwoofer; our latest entry-level car audio subwoofer line designed to kickstart your journey into the world of car audio. The Bio 15” boasts a conservatively rated 500-watt rms power rating and delivers impressive performance while remaining budget-friendly.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 2 Ohm
Push Terminal Size: 12 Gauge

The Bio 15” subwoofer comes equipped with a 2.4 inch - 4 layer high-temperature copper voice coil and a high narrow foam surround, providing precise and clear bass reproduction. Its advanced air cooling system will keep things running smoothly even during extended listening sessions, ensuring reliable performance when you need it most.

Designed to seamlessly pair with our pre-fabricated subwoofer enclosures, the Bio 15” Subwoofer offers a hassle-free solution for those who prefer not to build their own subwoofer box. When combined with our subwoofer enclosures, customers can expect deep bass on the lows, delivering an immersive audio experience that's sure to impress.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 15"
Voice Coil Configuration: Dual 2 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.4 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Single Stacked Y25 Ferrite Magnet
Bottom Plate Type: Signature White Zinc Low Carbon Iron Bottom Plate
Surround Type: High Narrow Foam Surround
Cone Type: Pressed Composite Paper
Tinsel Lead Type: Single Round Copper Tinsel Leads with 2% Silver
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: 8.5" Single-Layer Poly-Cotton Spider Suspension
T/S Parameters:
Qes: 0.795
Qms: 6.465
Qts: 0.708
Fs: 31.14 Hz
Vas: 110.74 L
Mms: 223.91 g
Cms: 0.117 m/N
Re: 3.8 Ω
Bl: 14.472 Tm
Le: /
Sd: 824 cm²
Xmax - Single Way (mm): 7.5 mm
Xmax - Single Way (cm): 0.75 cm
Vd (Sd*Xmax): 618 cmÂł
SPL: 88.26 dB
Box Specs
Subwoofer Measurements:
Mounting depth 6.42"
Cutout diameter 13.94"
Overall diameter 15.39"
Flat Response Curve (SQ):
Sealed 1.5 ftÂł
Ported 2.5 ftÂł
Tuning Frequency 28 Hz
Port Area 24 in²
Boomer Response Curve (SPL):
Sealed /
Ported 4 ftÂł
Tuning Frequency 28 Hz
Port Area 64 in²

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Details

CT Sounds is proud to introduce the Bio 15” Car Subwoofer; our latest entry-level car audio subwoofer line designed to kickstart your journey into the world of car audio. The Bio 15” boasts a conservatively rated 500-watt rms power rating and delivers impressive performance while remaining budget-friendly.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 4 Ohm
Push Terminal Size: 12 Gauge

The Bio 15” subwoofer comes equipped with a 2.4 inch - 4 layer high-temperature copper voice coil and a high narrow foam surround, providing precise and clear bass reproduction. Its advanced air cooling system will keep things running smoothly even during extended listening sessions, ensuring reliable performance when you need it most.

Designed to seamlessly pair with our pre-fabricated subwoofer enclosures, the Bio 15” Subwoofer offers a hassle-free solution for those who prefer not to build their own subwoofer box. When combined with our subwoofer enclosures, customers can expect deep bass on the lows, delivering an immersive audio experience that's sure to impress.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 15"
Voice Coil Configuration: Dual 4 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.4 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Single Stacked Y25 Ferrite Magnet
Bottom Plate Type: Signature White Zinc Low Carbon Iron Bottom Plate
Surround Type: High Narrow Foam Surround
Cone Type: Pressed Composite Paper
Tinsel Lead Type: Single Round Copper Tinsel Leads with 2% Silver
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: 8.5" Single-Layer Poly-Cotton Spider Suspension
T/S Parameters:
Qes: 0.803
Qms: 5.389
Qts: 0.698
Fs: 31.15 Hz
Vas: 117.95 L
Mms: 210.13 g
Cms: 0.124 m/N
Re: 7.4 Ω
Bl: 19.47 Tm
Le: /
Sd: 824 cm²
Xmax - Single Way (mm): 7.5 mm
Xmax - Single Way (cm): 0.75 cm
Vd (Sd*Xmax): 618 cmÂł
SPL: 88.50 dB
Box Specs
Subwoofer Measurements:
Mounting depth 6.42"
Cutout diameter 13.94"
Overall diameter 15.39"
Flat Response Curve (SQ):
Sealed 1.5 ftÂł
Ported 2.5 ftÂł
Tuning Frequency 28 Hz
Port Area 24 in²
Boomer Response Curve (SPL):
Sealed /
Ported 4 ftÂł
Tuning Frequency 28 Hz
Port Area 64 in²

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Wiring Calc.
#calc#
Details

CT Sounds is proud to introduce the Bio 15” Car Subwoofer; our latest entry-level car audio subwoofer line designed to kickstart your journey into the world of car audio. The Bio 15” boasts a conservatively rated 500-watt rms power rating and delivers impressive performance while remaining budget-friendly.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 2 Ohm
Push Terminal Size: 12 Gauge

The Bio 15” subwoofer comes equipped with a 2.4 inch - 4 layer high-temperature copper voice coil and a high narrow foam surround, providing precise and clear bass reproduction. Its advanced air cooling system will keep things running smoothly even during extended listening sessions, ensuring reliable performance when you need it most.

Designed to seamlessly pair with our pre-fabricated subwoofer enclosures, the Bio 15” Subwoofer offers a hassle-free solution for those who prefer not to build their own subwoofer box. When combined with our subwoofer enclosures, customers can expect deep bass on the lows, delivering an immersive audio experience that's sure to impress.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 15"
Voice Coil Configuration: Dual 2 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.4 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Single Stacked Y25 Ferrite Magnet
Bottom Plate Type: Signature White Zinc Low Carbon Iron Bottom Plate
Surround Type: High Narrow Foam Surround
Cone Type: Pressed Composite Paper
Tinsel Lead Type: Single Round Copper Tinsel Leads with 2% Silver
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: 8.5" Single-Layer Poly-Cotton Spider Suspension
T/S Parameters:
Qes: 0.795
Qms: 6.465
Qts: 0.708
Fs: 31.14 Hz
Vas: 110.74 L
Mms: 223.91 g
Cms: 0.117 m/N
Re: 3.8 Ω
Bl: 14.472 Tm
Le: /
Sd: 824 cm²
Xmax - Single Way (mm): 7.5 mm
Xmax - Single Way (cm): 0.75 cm
Vd (Sd*Xmax): 618 cmÂł
SPL: 88.26 dB
Box Specs
Subwoofer Measurements:
Mounting depth 6.42"
Cutout diameter 13.94"
Overall diameter 15.39"
Flat Response Curve (SQ):
Sealed 1.5 ftÂł
Ported 2.5 ftÂł
Tuning Frequency 28 Hz
Port Area 24 in²
Boomer Response Curve (SPL):
Sealed /
Ported 4 ftÂł
Tuning Frequency 28 Hz
Port Area 64 in²

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Details

CT Sounds is proud to introduce the Bio 15” Car Subwoofer; our latest entry-level car audio subwoofer line designed to kickstart your journey into the world of car audio. The Bio 15” boasts a conservatively rated 500-watt rms power rating and delivers impressive performance while remaining budget-friendly.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 4 Ohm
Push Terminal Size: 12 Gauge

The Bio 15” subwoofer comes equipped with a 2.4 inch - 4 layer high-temperature copper voice coil and a high narrow foam surround, providing precise and clear bass reproduction. Its advanced air cooling system will keep things running smoothly even during extended listening sessions, ensuring reliable performance when you need it most.

Designed to seamlessly pair with our pre-fabricated subwoofer enclosures, the Bio 15” Subwoofer offers a hassle-free solution for those who prefer not to build their own subwoofer box. When combined with our subwoofer enclosures, customers can expect deep bass on the lows, delivering an immersive audio experience that's sure to impress.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 15"
Voice Coil Configuration: Dual 4 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.4 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Single Stacked Y25 Ferrite Magnet
Bottom Plate Type: Signature White Zinc Low Carbon Iron Bottom Plate
Surround Type: High Narrow Foam Surround
Cone Type: Pressed Composite Paper
Tinsel Lead Type: Single Round Copper Tinsel Leads with 2% Silver
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: 8.5" Single-Layer Poly-Cotton Spider Suspension
T/S Parameters:
Qes: 0.803
Qms: 5.389
Qts: 0.698
Fs: 31.15 Hz
Vas: 117.95 L
Mms: 210.13 g
Cms: 0.124 m/N
Re: 7.4 Ω
Bl: 19.47 Tm
Le: /
Sd: 824 cm²
Xmax - Single Way (mm): 7.5 mm
Xmax - Single Way (cm): 0.75 cm
Vd (Sd*Xmax): 618 cmÂł
SPL: 88.50 dB
Box Specs
Subwoofer Measurements:
Mounting depth 6.42"
Cutout diameter 13.94"
Overall diameter 15.39"
Flat Response Curve (SQ):
Sealed 1.5 ftÂł
Ported 2.5 ftÂł
Tuning Frequency 28 Hz
Port Area 24 in²
Boomer Response Curve (SPL):
Sealed /
Ported 4 ftÂł
Tuning Frequency 28 Hz
Port Area 64 in²

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Wiring Calc.
#calc#
Select COIL CONFIGURATION
From $30.00

Original: $99.99

-70%
BIO-15 // 500 Watts RMS 15 Inch Car Subwoofer—

$99.99

$30.00

Description

Details

CT Sounds is proud to introduce the Bio 15” Car Subwoofer; our latest entry-level car audio subwoofer line designed to kickstart your journey into the world of car audio. The Bio 15” boasts a conservatively rated 500-watt rms power rating and delivers impressive performance while remaining budget-friendly.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 2 Ohm
Push Terminal Size: 12 Gauge

The Bio 15” subwoofer comes equipped with a 2.4 inch - 4 layer high-temperature copper voice coil and a high narrow foam surround, providing precise and clear bass reproduction. Its advanced air cooling system will keep things running smoothly even during extended listening sessions, ensuring reliable performance when you need it most.

Designed to seamlessly pair with our pre-fabricated subwoofer enclosures, the Bio 15” Subwoofer offers a hassle-free solution for those who prefer not to build their own subwoofer box. When combined with our subwoofer enclosures, customers can expect deep bass on the lows, delivering an immersive audio experience that's sure to impress.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 15"
Voice Coil Configuration: Dual 2 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.4 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Single Stacked Y25 Ferrite Magnet
Bottom Plate Type: Signature White Zinc Low Carbon Iron Bottom Plate
Surround Type: High Narrow Foam Surround
Cone Type: Pressed Composite Paper
Tinsel Lead Type: Single Round Copper Tinsel Leads with 2% Silver
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: 8.5" Single-Layer Poly-Cotton Spider Suspension
T/S Parameters:
Qes: 0.795
Qms: 6.465
Qts: 0.708
Fs: 31.14 Hz
Vas: 110.74 L
Mms: 223.91 g
Cms: 0.117 m/N
Re: 3.8 Ω
Bl: 14.472 Tm
Le: /
Sd: 824 cm²
Xmax - Single Way (mm): 7.5 mm
Xmax - Single Way (cm): 0.75 cm
Vd (Sd*Xmax): 618 cmÂł
SPL: 88.26 dB
Box Specs
Subwoofer Measurements:
Mounting depth 6.42"
Cutout diameter 13.94"
Overall diameter 15.39"
Flat Response Curve (SQ):
Sealed 1.5 ftÂł
Ported 2.5 ftÂł
Tuning Frequency 28 Hz
Port Area 24 in²
Boomer Response Curve (SPL):
Sealed /
Ported 4 ftÂł
Tuning Frequency 28 Hz
Port Area 64 in²

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Details

CT Sounds is proud to introduce the Bio 15” Car Subwoofer; our latest entry-level car audio subwoofer line designed to kickstart your journey into the world of car audio. The Bio 15” boasts a conservatively rated 500-watt rms power rating and delivers impressive performance while remaining budget-friendly.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 4 Ohm
Push Terminal Size: 12 Gauge

The Bio 15” subwoofer comes equipped with a 2.4 inch - 4 layer high-temperature copper voice coil and a high narrow foam surround, providing precise and clear bass reproduction. Its advanced air cooling system will keep things running smoothly even during extended listening sessions, ensuring reliable performance when you need it most.

Designed to seamlessly pair with our pre-fabricated subwoofer enclosures, the Bio 15” Subwoofer offers a hassle-free solution for those who prefer not to build their own subwoofer box. When combined with our subwoofer enclosures, customers can expect deep bass on the lows, delivering an immersive audio experience that's sure to impress.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 15"
Voice Coil Configuration: Dual 4 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.4 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Single Stacked Y25 Ferrite Magnet
Bottom Plate Type: Signature White Zinc Low Carbon Iron Bottom Plate
Surround Type: High Narrow Foam Surround
Cone Type: Pressed Composite Paper
Tinsel Lead Type: Single Round Copper Tinsel Leads with 2% Silver
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: 8.5" Single-Layer Poly-Cotton Spider Suspension
T/S Parameters:
Qes: 0.803
Qms: 5.389
Qts: 0.698
Fs: 31.15 Hz
Vas: 117.95 L
Mms: 210.13 g
Cms: 0.124 m/N
Re: 7.4 Ω
Bl: 19.47 Tm
Le: /
Sd: 824 cm²
Xmax - Single Way (mm): 7.5 mm
Xmax - Single Way (cm): 0.75 cm
Vd (Sd*Xmax): 618 cmÂł
SPL: 88.50 dB
Box Specs
Subwoofer Measurements:
Mounting depth 6.42"
Cutout diameter 13.94"
Overall diameter 15.39"
Flat Response Curve (SQ):
Sealed 1.5 ftÂł
Ported 2.5 ftÂł
Tuning Frequency 28 Hz
Port Area 24 in²
Boomer Response Curve (SPL):
Sealed /
Ported 4 ftÂł
Tuning Frequency 28 Hz
Port Area 64 in²

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Wiring Calc.
#calc#
