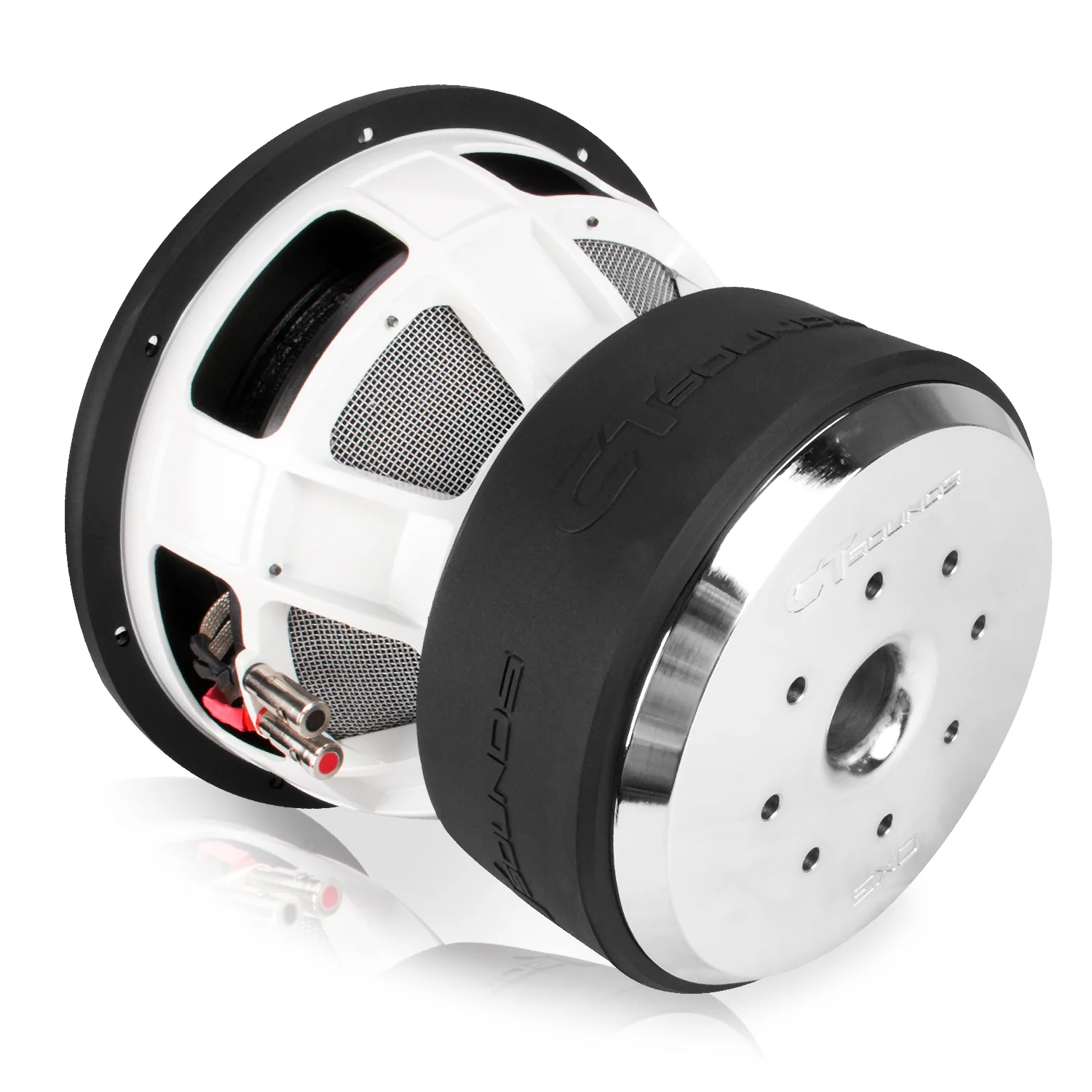

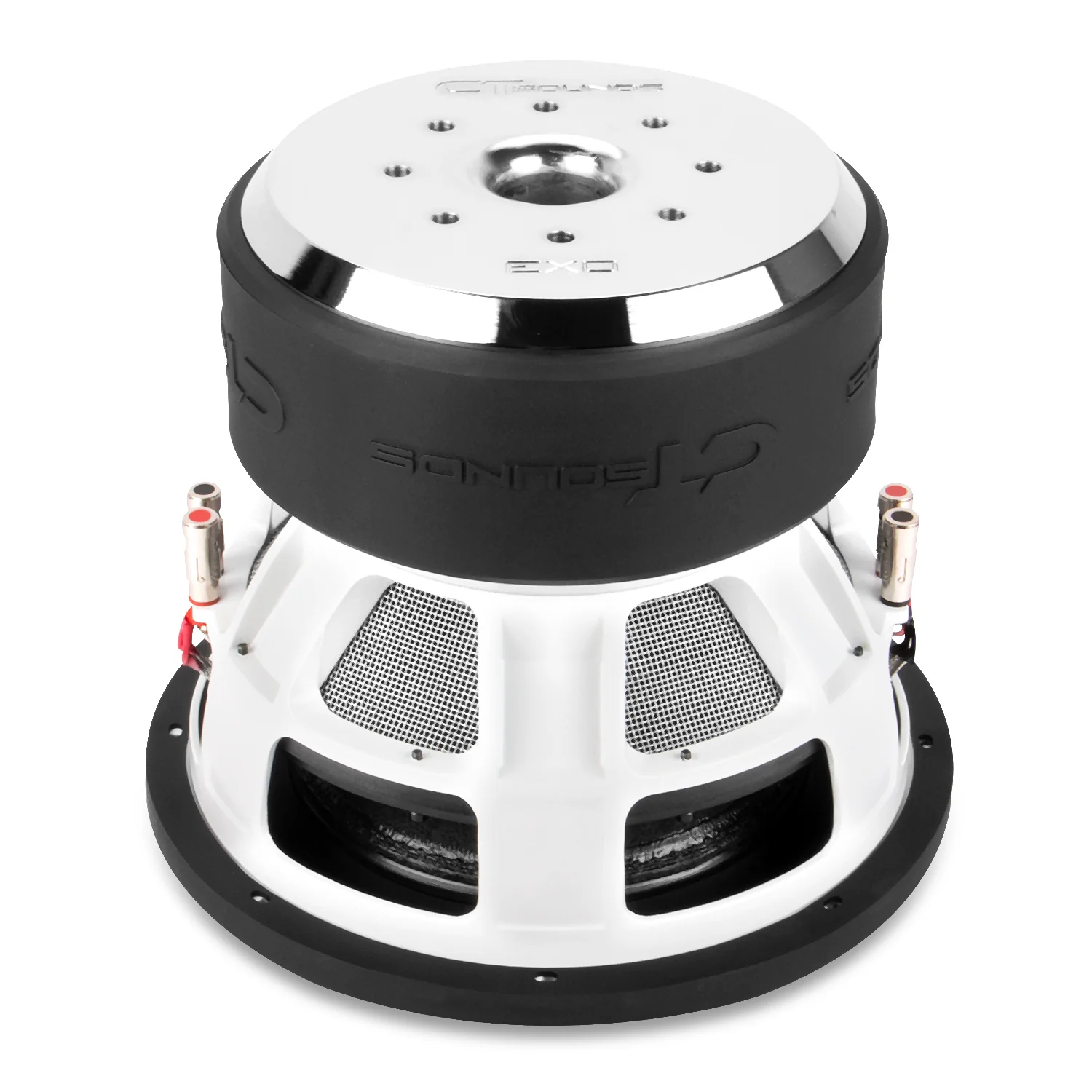

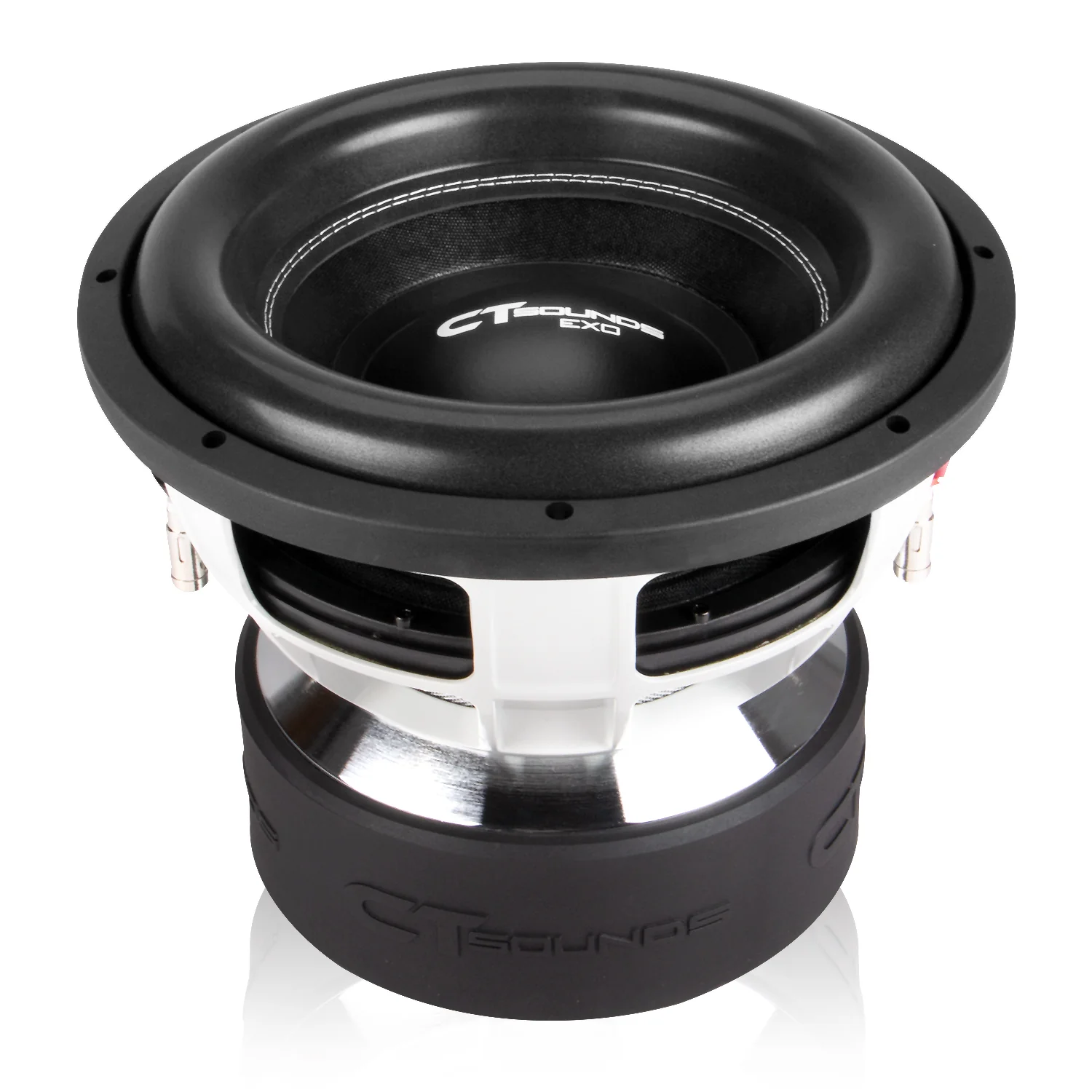

EXO-12 // 3000 Watts RMS 12 Inch Car Subwoofer
Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds EXO-12-D1 has the power to create the sonic explosion you crave. Can you handle the feeling of the Exosphere in your car? Bass yourself to the upper limits of the atmosphere with explosive sound pressure.
The subwoofer features a new and improved 4 inch - 4 layers flat aluminum USA voice coil, a triple stack Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual premium braided tinsel leads, and a pure Nomex spider pack. Boasting a monster power rating of 3000 Watts RMS, this 12-inch subwoofer was engineered to deliver the decibels you need to destroy the competition in the SPL lanes.
Looking for some serious bass? You have come to the ultimate layer; bang the lows or blow the glass off your neighbor’s window, the CT Sounds EXO-12-D1 12 Inch Dual 1 Ohm Car Subwoofer might make you s*#% your pants.
| Quick Facts: | |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Configuration: | Dual 1 Ohm |
| Push Terminal Size: | 4 Gauge |
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 12" |
| Voice Coil Configuration: | Dual 1 Ohm |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Type: | 4 Inch - 4 Layer Flat Aluminum USA Voice Coil |
| Magnet Type: | Triple Stacked Y35 Ferrite Magnet |
| Bottom Plate Type: | Signature Chrome Low Carbon Iron Bottom Plate |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 6% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Dual Braided Flat Copper Tinsel Leads |
| Terminal Type: | 4 Gauge Push Terminals |
| Basket Type: | Cast Aluminum |
| Spider Material: | Pure Nomex |
| T/S Parameters: | |
| Qes: | 0.51 |
| Qms: | 2.95 |
| Qts: | 0.43 |
| Fs: | 37.251 Hz |
| Vas: | 14.98 L |
| Mms: | 346.32 g |
| Cms: | 0.04747 m/N |
| Re: | 1.7 Ω |
| Bl: | 16.92 Tm |
| Le: | / |
| Sd: | 471.4 cm² |
| Xmax - Single Way (mm): | 27.5 mm |
| Xmax - Single Way (cm): | 2.75 cm |
| Vd (Sd*Xmax): | 942.8 cm³ |
| SPL: | 86.4 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 10.79" |
| Overall diameter | 12.28" |
| Mounting depth | 9.33" |
| Box Specifications: | |
| Port Area | 40 in 2 |
| Displacement | 0.25 ft 3 |
| Flat Response Curve (SQ): | |
| Sealed | - |
| Ported | 2.5 ft 3 |
| Tuning Frequency | 33 Hz |
| Boomer Response Curve (SPL): | |
| Sealed | - |
| Ported | 3.0 ft 3 |
| Tuning Frequency | 36 Hz |
*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds EXO-12-D2 has the power to create the sonic explosion you crave. Can you handle the feeling of the Exosphere in your car? Bass yourself to the upper limits of the atmosphere with explosive sound pressure.
The subwoofer features a new and improved 4 inch - 4 layers flat aluminum USA voice coil, a triple stack Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual premium braided tinsel leads, and a pure Nomex spider pack. Boasting a monster power rating of 3000 Watts RMS, this 12-inch subwoofer was engineered to deliver the decibels you need to destroy the competition in the SPL lanes.
Looking for some serious bass? You have come to the ultimate layer; bang the lows or blow the glass off your neighbor’s window, the CT Sounds Exo-12-D2 12 Inch Dual 2 Ohm Car Subwoofer might make you s*#% your pants.
| Quick Facts: | |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Configuration: | Dual 2 Ohm |
| Push Terminal Size: | 4 Gauge |
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 12" |
| Voice Coil Configuration: | Dual 2 Ohm |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Type: | 4 Inch - 4 Layer Flat Aluminum USA Voice Coil |
| Magnet Type: | Triple Stacked Y35 Ferrite Magnet |
| Bottom Plate Type: | Signature Chrome Low Carbon Iron Bottom Plate |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 6% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Dual Braided Flat Copper Tinsel Leads |
| Terminal Type: | 4 Gauge Push Terminals |
| Basket Type: | Cast Aluminum |
| Spider Material: | Pure Nomex |
| T/S Parameters: | |
| Qes: | 0.59 |
| Qms: | 3.19 |
| Qts: | 0.5 |
| Fs: | 37.61 Hz |
| Vas: | 16.23 L |
| Mms: | 348.31 g |
| Cms: | 0.05142 m/N |
| Re: | 3.7 Ω |
| Bl: | 22.65 Tm |
| Le: | / |
| Sd: | 471.4 cm² |
| Xmax - Single Way (mm): | 27.5 mm |
| Xmax - Single Way (cm): | 2.75 cm |
| Vd (Sd*Xmax): | 942.8 cm³ |
| SPL: | 85.5 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 10.79" |
| Overall diameter | 12.28" |
| Mounting depth | 9.33" |
| Box Specifications: | |
| Port Area | 40 in 2 |
| Displacement | 0.25 ft 3 |
| Flat Response Curve (SQ): | |
| Sealed | - |
| Ported | 2.5 ft 3 |
| Tuning Frequency | 33 Hz |
| Boomer Response Curve (SPL): | |
| Sealed | - |
| Ported | 3.0 ft 3 |
| Tuning Frequency | 36 Hz |
*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds EXO-12-D1 has the power to create the sonic explosion you crave. Can you handle the feeling of the Exosphere in your car? Bass yourself to the upper limits of the atmosphere with explosive sound pressure.
The subwoofer features a new and improved 4 inch - 4 layers flat aluminum USA voice coil, a triple stack Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual premium braided tinsel leads, and a pure Nomex spider pack. Boasting a monster power rating of 3000 Watts RMS, this 12-inch subwoofer was engineered to deliver the decibels you need to destroy the competition in the SPL lanes.
Looking for some serious bass? You have come to the ultimate layer; bang the lows or blow the glass off your neighbor’s window, the CT Sounds EXO-12-D1 12 Inch Dual 1 Ohm Car Subwoofer might make you s*#% your pants.
| Quick Facts: | |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Configuration: | Dual 1 Ohm |
| Push Terminal Size: | 4 Gauge |
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 12" |
| Voice Coil Configuration: | Dual 1 Ohm |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Type: | 4 Inch - 4 Layer Flat Aluminum USA Voice Coil |
| Magnet Type: | Triple Stacked Y35 Ferrite Magnet |
| Bottom Plate Type: | Signature Chrome Low Carbon Iron Bottom Plate |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 6% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Dual Braided Flat Copper Tinsel Leads |
| Terminal Type: | 4 Gauge Push Terminals |
| Basket Type: | Cast Aluminum |
| Spider Material: | Pure Nomex |
| T/S Parameters: | |
| Qes: | 0.51 |
| Qms: | 2.95 |
| Qts: | 0.43 |
| Fs: | 37.251 Hz |
| Vas: | 14.98 L |
| Mms: | 346.32 g |
| Cms: | 0.04747 m/N |
| Re: | 1.7 Ω |
| Bl: | 16.92 Tm |
| Le: | / |
| Sd: | 471.4 cm² |
| Xmax - Single Way (mm): | 27.5 mm |
| Xmax - Single Way (cm): | 2.75 cm |
| Vd (Sd*Xmax): | 942.8 cm³ |
| SPL: | 86.4 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 10.79" |
| Overall diameter | 12.28" |
| Mounting depth | 9.33" |
| Box Specifications: | |
| Port Area | 40 in 2 |
| Displacement | 0.25 ft 3 |
| Flat Response Curve (SQ): | |
| Sealed | - |
| Ported | 2.5 ft 3 |
| Tuning Frequency | 33 Hz |
| Boomer Response Curve (SPL): | |
| Sealed | - |
| Ported | 3.0 ft 3 |
| Tuning Frequency | 36 Hz |
*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds EXO-12-D2 has the power to create the sonic explosion you crave. Can you handle the feeling of the Exosphere in your car? Bass yourself to the upper limits of the atmosphere with explosive sound pressure.
The subwoofer features a new and improved 4 inch - 4 layers flat aluminum USA voice coil, a triple stack Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual premium braided tinsel leads, and a pure Nomex spider pack. Boasting a monster power rating of 3000 Watts RMS, this 12-inch subwoofer was engineered to deliver the decibels you need to destroy the competition in the SPL lanes.
Looking for some serious bass? You have come to the ultimate layer; bang the lows or blow the glass off your neighbor’s window, the CT Sounds Exo-12-D2 12 Inch Dual 2 Ohm Car Subwoofer might make you s*#% your pants.
| Quick Facts: | |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Configuration: | Dual 2 Ohm |
| Push Terminal Size: | 4 Gauge |
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 12" |
| Voice Coil Configuration: | Dual 2 Ohm |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Type: | 4 Inch - 4 Layer Flat Aluminum USA Voice Coil |
| Magnet Type: | Triple Stacked Y35 Ferrite Magnet |
| Bottom Plate Type: | Signature Chrome Low Carbon Iron Bottom Plate |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 6% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Dual Braided Flat Copper Tinsel Leads |
| Terminal Type: | 4 Gauge Push Terminals |
| Basket Type: | Cast Aluminum |
| Spider Material: | Pure Nomex |
| T/S Parameters: | |
| Qes: | 0.59 |
| Qms: | 3.19 |
| Qts: | 0.5 |
| Fs: | 37.61 Hz |
| Vas: | 16.23 L |
| Mms: | 348.31 g |
| Cms: | 0.05142 m/N |
| Re: | 3.7 Ω |
| Bl: | 22.65 Tm |
| Le: | / |
| Sd: | 471.4 cm² |
| Xmax - Single Way (mm): | 27.5 mm |
| Xmax - Single Way (cm): | 2.75 cm |
| Vd (Sd*Xmax): | 942.8 cm³ |
| SPL: | 85.5 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 10.79" |
| Overall diameter | 12.28" |
| Mounting depth | 9.33" |
| Box Specifications: | |
| Port Area | 40 in 2 |
| Displacement | 0.25 ft 3 |
| Flat Response Curve (SQ): | |
| Sealed | - |
| Ported | 2.5 ft 3 |
| Tuning Frequency | 33 Hz |
| Boomer Response Curve (SPL): | |
| Sealed | - |
| Ported | 3.0 ft 3 |
| Tuning Frequency | 36 Hz |
*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
Description
Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds EXO-12-D1 has the power to create the sonic explosion you crave. Can you handle the feeling of the Exosphere in your car? Bass yourself to the upper limits of the atmosphere with explosive sound pressure.
The subwoofer features a new and improved 4 inch - 4 layers flat aluminum USA voice coil, a triple stack Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual premium braided tinsel leads, and a pure Nomex spider pack. Boasting a monster power rating of 3000 Watts RMS, this 12-inch subwoofer was engineered to deliver the decibels you need to destroy the competition in the SPL lanes.
Looking for some serious bass? You have come to the ultimate layer; bang the lows or blow the glass off your neighbor’s window, the CT Sounds EXO-12-D1 12 Inch Dual 1 Ohm Car Subwoofer might make you s*#% your pants.
| Quick Facts: | |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Configuration: | Dual 1 Ohm |
| Push Terminal Size: | 4 Gauge |
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 12" |
| Voice Coil Configuration: | Dual 1 Ohm |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Type: | 4 Inch - 4 Layer Flat Aluminum USA Voice Coil |
| Magnet Type: | Triple Stacked Y35 Ferrite Magnet |
| Bottom Plate Type: | Signature Chrome Low Carbon Iron Bottom Plate |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 6% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Dual Braided Flat Copper Tinsel Leads |
| Terminal Type: | 4 Gauge Push Terminals |
| Basket Type: | Cast Aluminum |
| Spider Material: | Pure Nomex |
| T/S Parameters: | |
| Qes: | 0.51 |
| Qms: | 2.95 |
| Qts: | 0.43 |
| Fs: | 37.251 Hz |
| Vas: | 14.98 L |
| Mms: | 346.32 g |
| Cms: | 0.04747 m/N |
| Re: | 1.7 Ω |
| Bl: | 16.92 Tm |
| Le: | / |
| Sd: | 471.4 cm² |
| Xmax - Single Way (mm): | 27.5 mm |
| Xmax - Single Way (cm): | 2.75 cm |
| Vd (Sd*Xmax): | 942.8 cm³ |
| SPL: | 86.4 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 10.79" |
| Overall diameter | 12.28" |
| Mounting depth | 9.33" |
| Box Specifications: | |
| Port Area | 40 in 2 |
| Displacement | 0.25 ft 3 |
| Flat Response Curve (SQ): | |
| Sealed | - |
| Ported | 2.5 ft 3 |
| Tuning Frequency | 33 Hz |
| Boomer Response Curve (SPL): | |
| Sealed | - |
| Ported | 3.0 ft 3 |
| Tuning Frequency | 36 Hz |
*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds EXO-12-D2 has the power to create the sonic explosion you crave. Can you handle the feeling of the Exosphere in your car? Bass yourself to the upper limits of the atmosphere with explosive sound pressure.
The subwoofer features a new and improved 4 inch - 4 layers flat aluminum USA voice coil, a triple stack Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual premium braided tinsel leads, and a pure Nomex spider pack. Boasting a monster power rating of 3000 Watts RMS, this 12-inch subwoofer was engineered to deliver the decibels you need to destroy the competition in the SPL lanes.
Looking for some serious bass? You have come to the ultimate layer; bang the lows or blow the glass off your neighbor’s window, the CT Sounds Exo-12-D2 12 Inch Dual 2 Ohm Car Subwoofer might make you s*#% your pants.
| Quick Facts: | |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Configuration: | Dual 2 Ohm |
| Push Terminal Size: | 4 Gauge |
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 12" |
| Voice Coil Configuration: | Dual 2 Ohm |
| RMS Power: | 3000 Watts |
| MAX Power: | 6000 Watts |
| Voice Coil Type: | 4 Inch - 4 Layer Flat Aluminum USA Voice Coil |
| Magnet Type: | Triple Stacked Y35 Ferrite Magnet |
| Bottom Plate Type: | Signature Chrome Low Carbon Iron Bottom Plate |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 6% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Dual Braided Flat Copper Tinsel Leads |
| Terminal Type: | 4 Gauge Push Terminals |
| Basket Type: | Cast Aluminum |
| Spider Material: | Pure Nomex |
| T/S Parameters: | |
| Qes: | 0.59 |
| Qms: | 3.19 |
| Qts: | 0.5 |
| Fs: | 37.61 Hz |
| Vas: | 16.23 L |
| Mms: | 348.31 g |
| Cms: | 0.05142 m/N |
| Re: | 3.7 Ω |
| Bl: | 22.65 Tm |
| Le: | / |
| Sd: | 471.4 cm² |
| Xmax - Single Way (mm): | 27.5 mm |
| Xmax - Single Way (cm): | 2.75 cm |
| Vd (Sd*Xmax): | 942.8 cm³ |
| SPL: | 85.5 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 10.79" |
| Overall diameter | 12.28" |
| Mounting depth | 9.33" |
| Box Specifications: | |
| Port Area | 40 in 2 |
| Displacement | 0.25 ft 3 |
| Flat Response Curve (SQ): | |
| Sealed | - |
| Ported | 2.5 ft 3 |
| Tuning Frequency | 33 Hz |
| Boomer Response Curve (SPL): | |
| Sealed | - |
| Ported | 3.0 ft 3 |
| Tuning Frequency | 36 Hz |
*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
