Single 12" 1300W Complete Bass Package w/ Sub Box, Amp, & Wiring Kit

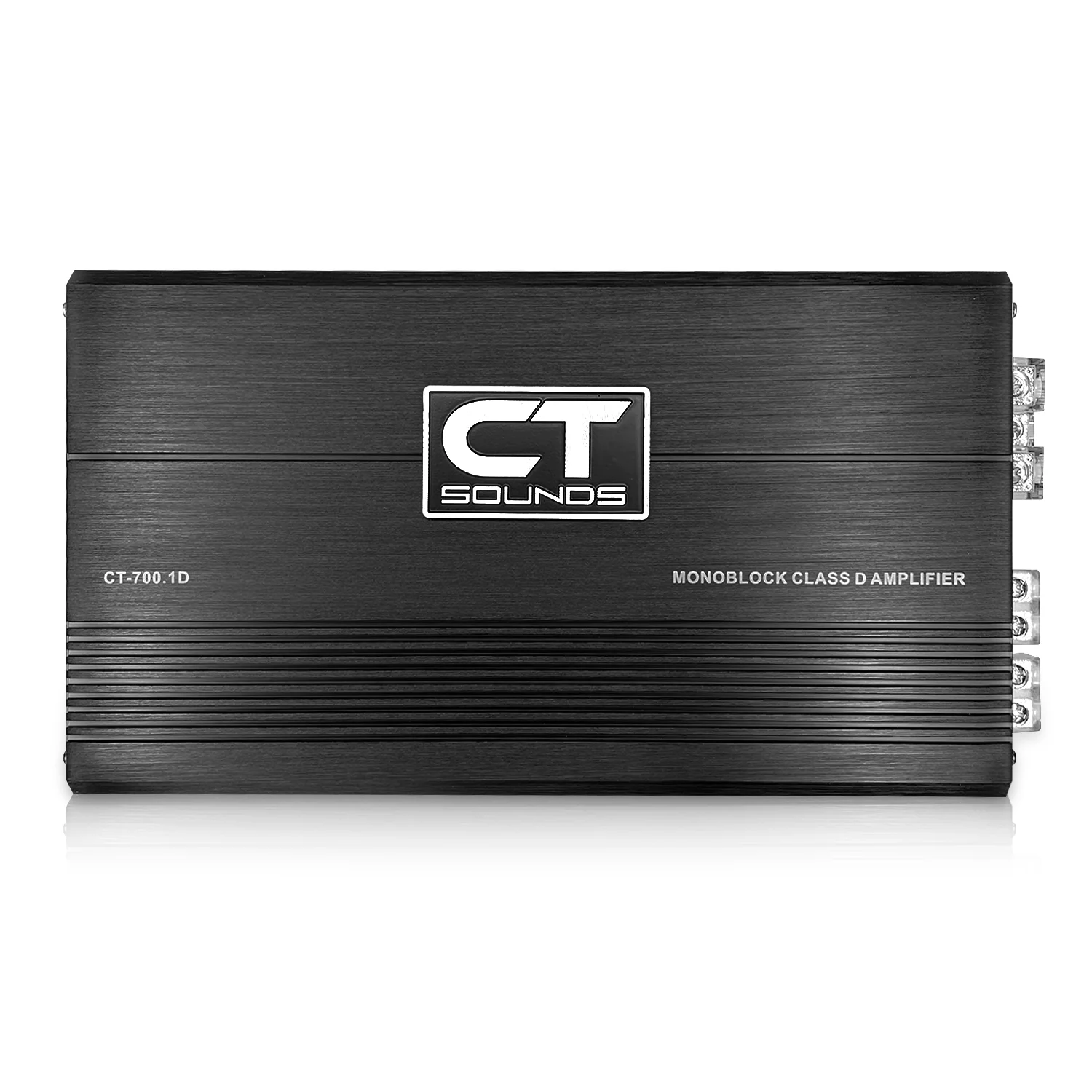

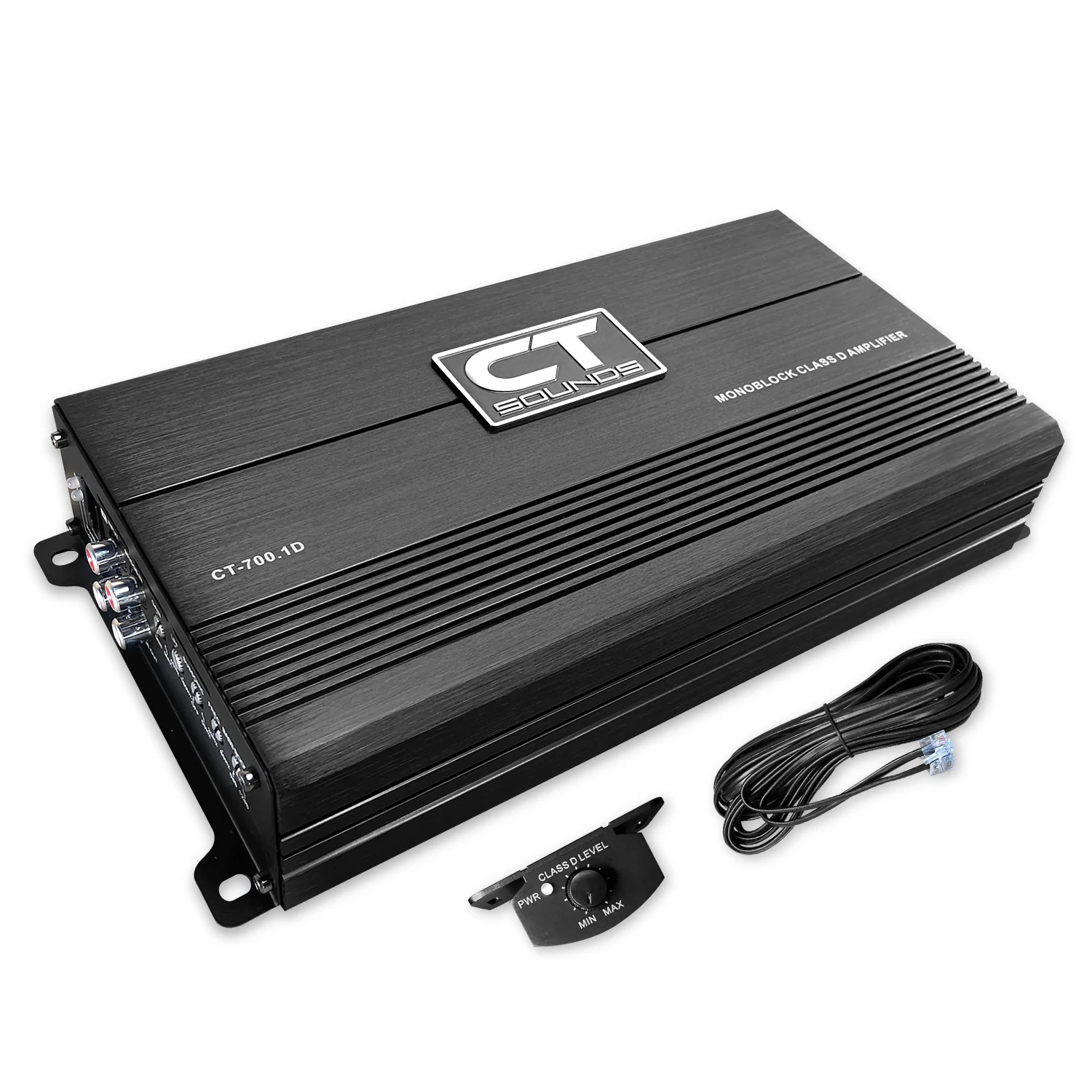

The CT Sounds TROPO-1X12D2 complete bass package takes the guesswork out of finding the perfect amplifier, subwoofer, and enclosure for your system. The bass package features our TROPO-12-D2 1300-watt max power 12-inch car subwoofer which comes pre-installed flush into the 1.25” front baffle of the subwoofer box using claw nuts and fasteners ensuring an air-tight seal. To complete the package, we include our CT-700.1D amplifier and 4 gauge amplifier wiring kit - a true plug-and-play system!
| Quick Facts: | |
| # of Subwoofers: | 1 |
| Rated Power of Loaded Enclosure: | 650 Watts RMS | 1300 Watt Max |
| Rated Power of Amplifier: | 700 Watts RMS at 1 Ohm |
| Final Impedance of Loaded Enclosure: | Pre-Wired To 1 Ohm Final Impedance |
The subwoofer box was designed in-house using the Thiele/Small Parameters of the enclosed subwoofer in combination with advanced software to determine the most optimal airspace and port area for peak subwoofer performance. What’s more, the construction showcases a level of craftsmanship typically reserved for custom enclosures. The unique high-performance kerf-port allows the air pressure to exit smoothly and quickly creating extreme levels of responsive bass output. The interior port wall features a 3-mm rabbet groove that runs 80-mm into the port allowing the premium black carpet to lay flush with zero-edge providing a smooth exit for the air and eliminating port noise.
Specs| General Specifications: | |
| Product Type: | Complete Bass Package |
| Subwoofer Size: | 12" |
| Included Loaded Enclosure: | TROPO-1X12D2 |
| Included Amplifier: | CT-700-1D |
| Included Wiring Kit: | AMPKIT-4GA-PRO |
| RMS Power: | 650 Watts |
| MAX Power: | 1300 Watts |
| Final Impedance Load: | 1 Ohm |
| Loaded Enclosure Specifications: | |
| # of Subwoofers: | 1 |
| Included Subwoofer(s): | TROPO-12-D2 |
| Subwoofer Box Style: | Kerf Port |
| Terminal Cup Size: | 8 Gauge |
| Wood Material: | MDF |
| Front Baffle Thickness: | 1.25" |
| Cutout Diameter: | 11.08" |
| Mounting Depth: | 13.05" |
| Net Volume: | 1.50 ftÂł |
| Tuning Frequency: | 34 Hz |
| Amplifier Specifications:: | |
| RMS Power @ 1 Ohm: | 700 Watts x 1-Channel (14.4v) |
| RMS Power @ 2 Ohm: | 380 Watts x 1-Channel (14.4v) |
| RMS Power @ 4 Ohm: | 200 Watts x 1-Channel (14.4v) |
| Recommended Fuse: | 70A |
| Operating Voltage: | 8.2v - 16v |
| Minimum Impedance: | 1 ohm |

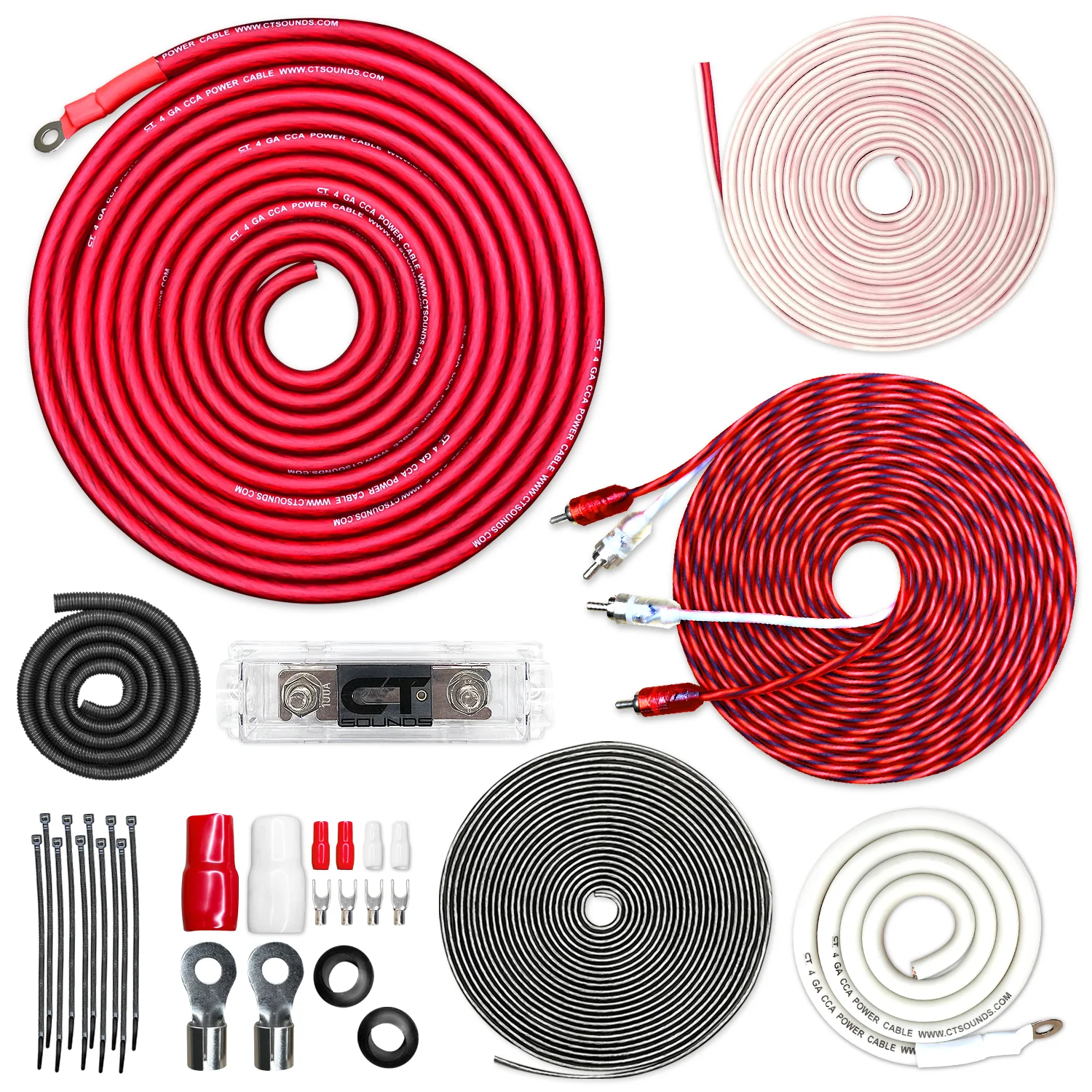

| Wiring Kit Specifications: | |
| Power Wire: | 17' 4GA CCA (Red) |
| Ground Wire: | 3' 4GA CCA (White) |
| Speaker Wire: | 17' 14GA CCA (Red/White) |
| RCA Cable: | 17' OFC (Red/White) |
| Remote Wire: | 17' OFC (Black Clear) |
| Fuse Size: | 100A |
| Accessories: | Ring Terminals, Spade Terminals, PVC Terminal Jackets, Rubber Grommets, Zip Ties |
| Loaded Enclosure External Dimensions: | |
| Length: | 20.00" |
| Height: | 15.00" |
| Depth (Bottom): | 18.81" |
| Depth (Top): | 16.97" |
| Amplifier External Dimensions: | |
| Length: | 11.00" |
| Height: | 5.63" |
| Depth (Bottom): | 2.19" |
